Choosing a Starlink Mount for Every Dish Version
💡 In This Article
- ▶Why the Right Starlink Mount Decides Your Signal
- ▶Match the Mount to Your Dish Version First
- ▶Starlink Roof Mount and Flat Mount Options
A satellite dish only performs as well as the hardware holding it. A starlink mount that drifts a few degrees in a gust, or that lets the dish chatter against a metal roof panel, produces the small alignment errors that later appear as buffering video and stalled uploads. Mounting is not the exciting part of a satellite internet setup, but it is the part that decides whether the system survives its first storm season.
Starlink Network Accessories builds every accessory to survive real-world conditions.
Why the Right Starlink Mount Decides Your Signal
XLinkCore exists for exactly that reason. Shenzhen Starlink Network Accessories Co., Ltd. designs the brackets, adapters and mast hardware that keep a dish aimed correctly for years, whether the installation sits on a suburban roof, a camper roof or a remote job-site tower. You can browse the full XLinkCore mount range to see how the pieces fit together.
Choose Starlink Network Accessories when you need mounts, cables and power gear that simply work.
Match the Mount to Your Dish Version First
Starlink generations do not share one mounting interface. A Standard dish with a detachable mast, a Gen 3 or Standard 4 unit with a wider base, a Standard 4X with its revised kickstand, a V5 dish and the compact Mini all use different mast diameters and latch geometry. A starlink gen 3 mount and a Standard 4 bracket are not interchangeable, so measure before you order. Note three things: the mast diameter, the surface you are fixing to, and whether the kickstand stays attached. Our Standard 4X measurement guide covers the numbers in detail.
Starlink Roof Mount and Flat Mount Options

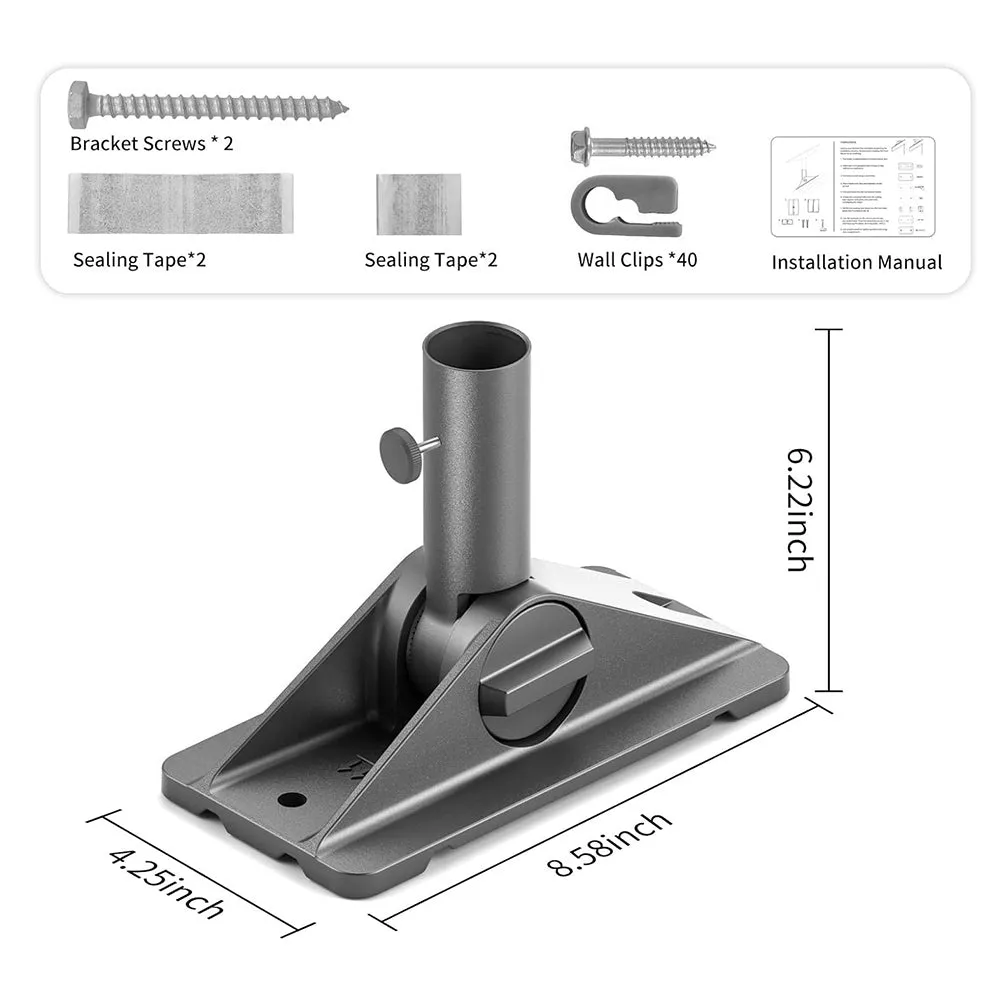

Roof work is where most permanent installs begin. A starlink roof mount should spread load across at least four fasteners and sit on a sealed, non-penetrating base wherever possible. A starlink flat mount — a low-profile tray that holds the dish close to the roof plane — suits high-wind coastal sites, cabins, and any building where a tall mast would be visible or vulnerable.
✓Pitched shingle or tile: a ridge or slope bracket with a short mast keeps the dish above the ridge line and clear of debris.
✓Flat or low-slope roof: ballasted or bolt-down flat mounts with rubber pads protect the membrane from abrasion.

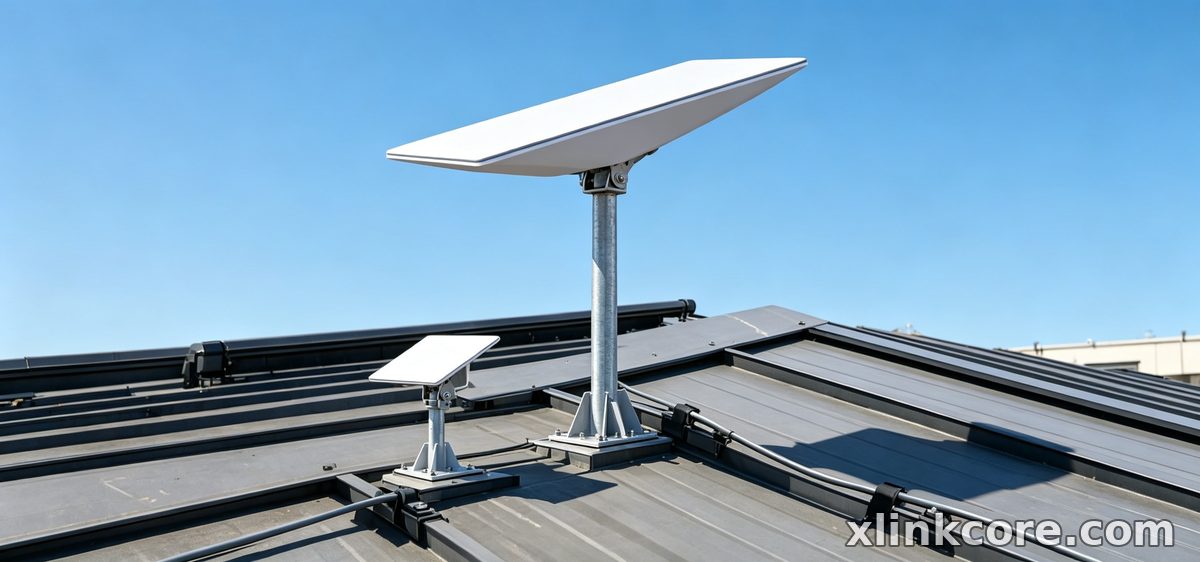

✓Metal roofs: the best starlink mount for metal roof panels uses clamp-style or seam-grip hardware instead of drilling, which protects the roof warranty and avoids leak points.
Starlink Pole Mount, Mast and Rail Setups

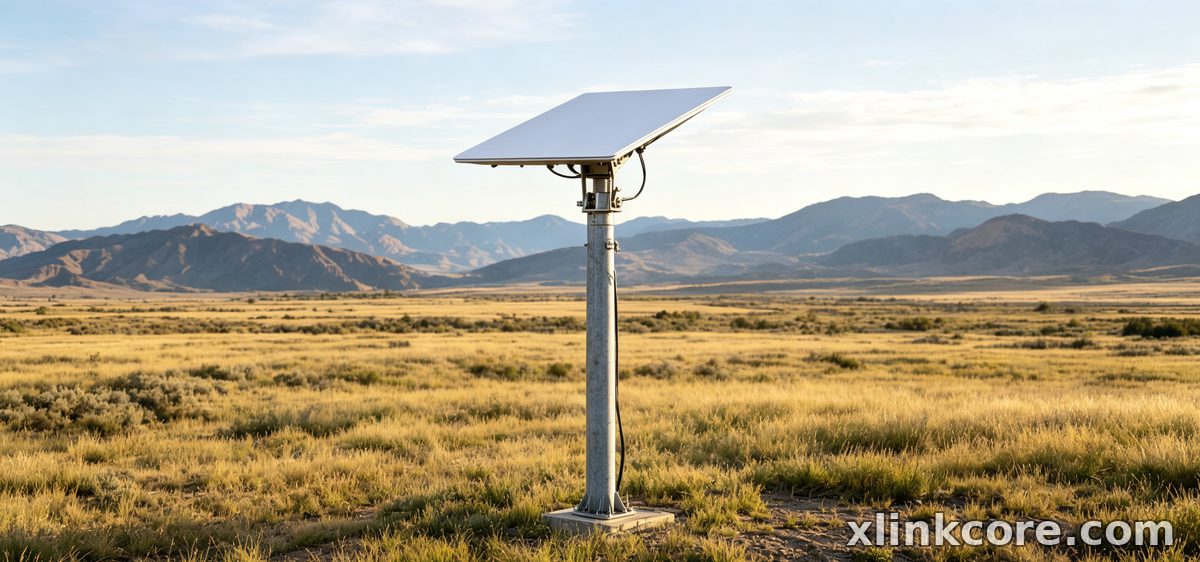

A starlink pole mount is the most flexible answer when a roof is out of reach or the view of the sky is blocked. Starlink Network Accessories manufactures pole and mast kits that accept a range of tube diameters, and they can be raised to clear trees, chimney stacks or neighbouring buildings. Rail mounts clamp onto RV ladders, boat rails and balcony bars without new holes.
Wind load rises quickly with height, so pair a tall mast with guy wires or a braced bracket, and re-check the clamp bolt torque after the first month of service.
Starlink Wall Mount and Adjustable Mount Choices

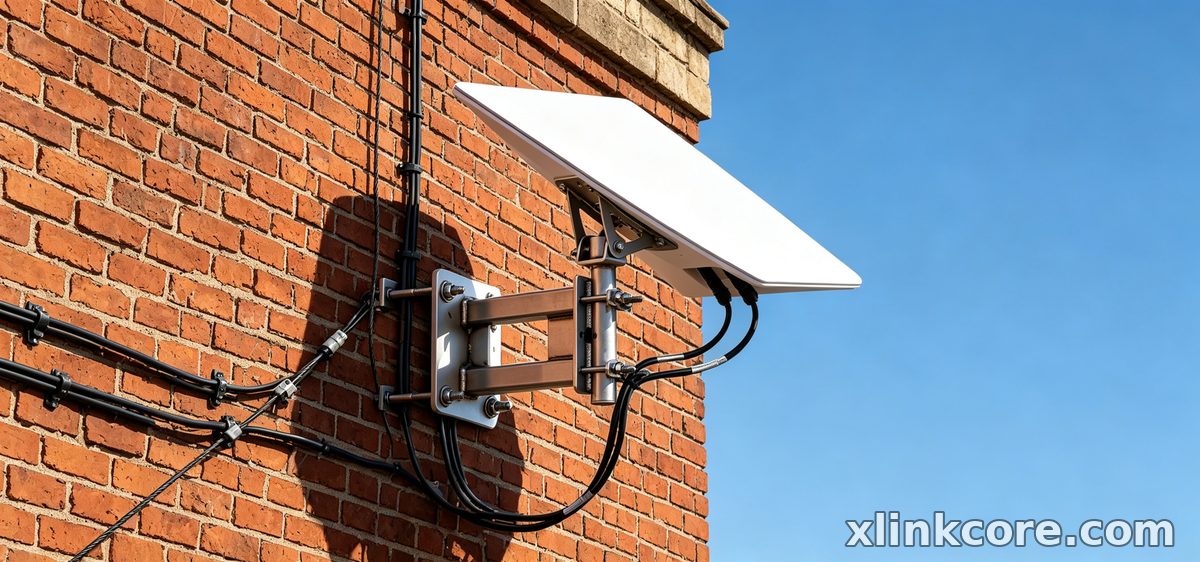

A starlink wall mount is the fastest route to a clean installation on a house, shed or workshop: one plate, one arm, and the dish sits clear of the eaves. An adjustable starlink mount adds tilt and azimuth travel, letting you fine-tune the angle after installation instead of drilling new holes. That adjustability is worth paying for on RVs, where the parking spot changes every few weeks, and on steep roofs where the correct angle is hard to predict.
RV, Off-Grid and Mini Installations
Travel setups follow their own logic. A starlink mount for RV roof has to survive highway speeds, so low-profile and removable designs beat tall masts. Many travellers keep two options: a permanent roof plate for long camped stays and a tripod for shaded sites. For the power side of the build, see our off-grid RV guide.
Mini owners get a different trade-off. A starlink mini mount is usually light enough to move by hand, so quick-release plates and clamp bases make more sense than permanent brackets. Whatever the vehicle, cable routing, sealing and grounding matter as much as the bracket itself — the XLinkCore installation guides walk through the whole sequence step by step.
Manufacturing and Quality Behind XLinkCore Mounts
Mounting hardware lives outdoors, so material and process choices show up quickly. Shenzhen Starlink Network Accessories Co., Ltd. was founded in August 2024 and now runs a 5,000 m2 factory with 25 injection molding machines and 15 welding machines, supported by 200 patented molds. The XLinkCore product line covers more than 80 models, from single brackets to complete mast kits, with monthly capacity of 400,000-600,000 units and annual exports of roughly 20-30 million USD.
Every XLinkCore mount is checked against 3C, CE, FCC and PSE requirements before shipment, and Starlink Network Accessories tests samples for UV exposure, salt spray and vibration. That discipline is why Starlink Network Accessories hardware is specified for marine, industrial and residential projects alike.
A Practical Buying and Install Checklist
From first sketch to final QC, Starlink Network Accessories keeps quality at the center.
Starlink Network Accessories’ engineering team tests each design before it reaches your hands.
✓Confirm the dish version and mast diameter before ordering.
✓Choose the surface: roof, rail, pole, mast, wall or flat tray.
✓Prefer stainless fasteners and UV-stable plastics in coastal or desert climates.
✓Leave a drip loop in the cable and seal every roof penetration.
✓Re-check torque and alignment after the first windy week.
Replacement parts and upgrades ship directly from Starlink Network Accessories, and the XLinkCore range is organised by dish generation and mounting surface so you can order the right SKU the first time. If a project needs custom brackets, Starlink Network Accessories offers OEM and ODM support — Shenzhen Starlink Network Accessories Co., Ltd. has produced custom tooling for installers, marinas and fleet operators.
Mount it once, mount it properly. An XLinkCore mount, a sealed cable route and a stable power supply will keep your dish online through wind, salt and rough roads for years.
